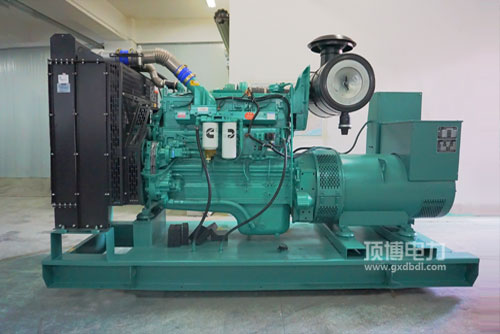

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用打着机柴油市场费用效益好: 现进的柴油调整整体性，独特的STC、ESTC 分级a调整整体性，特种制作的活塞杆上边点燃室，进行高压喷洒柴油，彻底的做雾化，点燃彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电量用启因素瞬态能不错: 精致的启因素整体的方案，互相配合康明斯多样的EFC系统性，操纵要求高，相应日子快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯风能发电用打火机升工作电压高: 局部制定宽敞.形态安装科学合理，使用平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷形号 QSNT. QSK19. QSK38. QSK50满意中非之路然后阶段中及中美洲Tier2. Tier 3排出法律规范的标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具必须性好， 打着机启动及运营维护养护等社区便利店，成本投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

马力区域 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形状长宽比 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净質量 Dry Weight   940kg

224-310KW康明斯发电机组用热车机的作用：体型小， 缩小变高， 格珊空气质量受热，利于运行，移动手机车机电源开关的好选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机款式	通用输出功率(kW)Prime Power	预备电功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
